| Parameter | LUNA2000-200KWH-2H1 | LUNA2000-161KWH-2H1 | LUNA2000-129KWH-2H1 | LUNA2000-97KWH-1H1 |
|---|---|---|---|---|
| Energy Storage System Parameters | ||||
| Model Type | LUNA2000-200KWH-2H1 | LUNA2000-161KWH-2H1 | LUNA2000-129KWH-2H1 | LUNA2000-97KWH-1H1 |
| Battery Configuration | 12S1P | 10S1P | 8S1P | 6S1P |
| Maximum battery capacity of the energy storage system | 193.5kWh | 161.3kWh | 129.0kWh | 96.8kWh |
| Max. Charging Power | ≤100 kW | ≤92 kW | ||
| Max. Discharging Power | ≤100 kW | ≤92 kW | ||
| Dimensions (W x H x D) | 1810mm × 2135mm × 1200mm | |||
| Dimensions (W x H x D), including Smart Rack Controller and Smart PCS | 2570mm x 2135mm x 1200mm | |||
| Weight (including the battery pack) | ≤2950kg | ≤2690kg | ≤2430kg | ≤2170kg |
| Weight (without the battery pack) | ≤1070kg | ≤1070kg | ≤1090kg | ≤1130kg |
| Operating temperature range | -30 °C ~ 55 °C | |||
| Storage temperature range | -40 °C ~ 60 °C | |||
| Operating humidity range | 0 ~ 100% (non-condensing) | |||
| Maximum operating altitude | 4,000 m | |||
| Installation Environment Requirement | Outdoor installation | |||
| Battery temperature control mode | Industrial-grade air conditioner | |||
| Fire suppression mode of energy storage system | YES | |||
| Auxiliary Power Supply | 220Vac, ≤4.2kW | |||
| Communication port | Ethernet / SFP | |||
| Communication protocol | Modbus TCP | |||
| Protection degree | IP55 | |||
| EMC Protection Rating | ClassA | |||
| DC Lightning Protection | Type II | |||
| Standards | ||||
| Environment | RoHS | |||
| Certification Standards | GB/T 36276-2018; GB/T 33582; UL9540A; UN38.3; ISO 9227:2017; IEC 60529; IEC/EN 62477-1 IEC/EN 62040-1; IEC/EN 61000-6-2; IEC/EN 61000-6-4; EN 55011; | |||
| Component | Image | Specification | Details | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

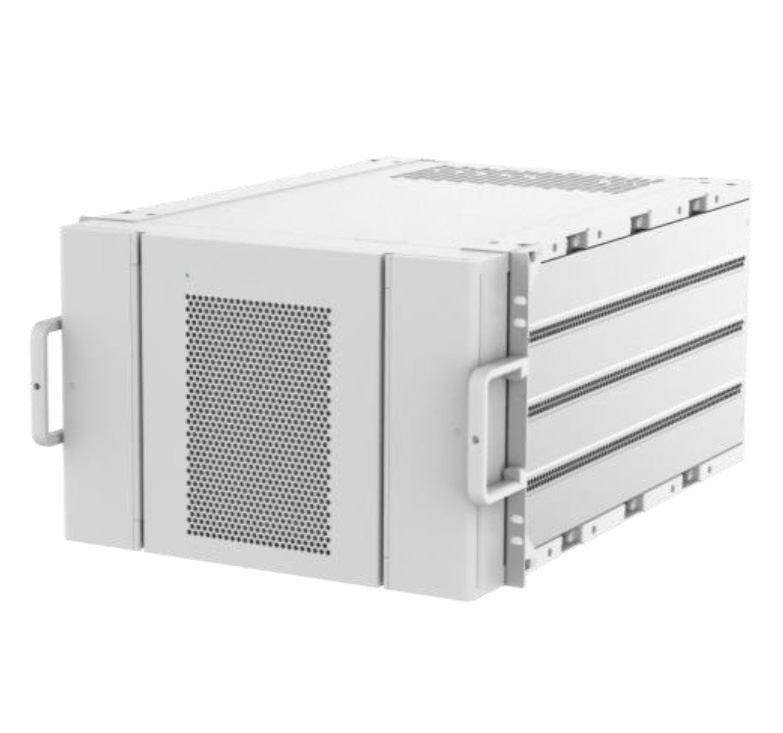

| Battery Pack | |||||||||||||||||||||
| General |  | Model Type | LUNA2000-200KWH-2H1 LUNA2000-161/129KWH-2H1 LUNA2000-97KWH-1H1 | ||||||||||||||||||
| Cell Material | LFP | ||||||||||||||||||||
| Nominal Capacity | 16.13 kWh | ||||||||||||||||||||
| Supported Charge & Discharge Rate | ≤0.5C (for LUNA2000-200KWH-2H1) ≤1C (for other models) | ||||||||||||||||||||
| Weight | ≤ 140 kg | ||||||||||||||||||||
| Dimensions (W × H × D) | 442 × 308 × 660 mm | ||||||||||||||||||||

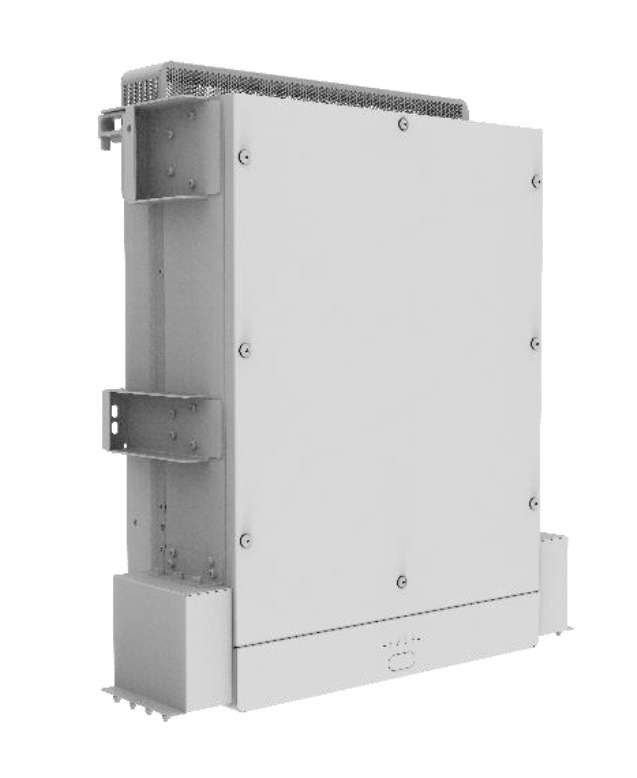

| Smart Rack Controller | |||||||||||||||||||||
| Efficiency |  | Max. Efficiency | ≥ 98.5% | ||||||||||||||||||
| Battery Side | Rated Voltage | 691.2 V | |||||||||||||||||||
| Operating Voltage Range | 40 V ~ 1,050 V | ||||||||||||||||||||
| Min. Start Voltage | 350 V | ||||||||||||||||||||
| Bus Side | Max. DC Voltage | 1,100 V | |||||||||||||||||||
| Rated Voltage | 665 V | ||||||||||||||||||||
| Rated Current | 152.6 A | ||||||||||||||||||||
| General | Dimensions (W × H × D) | 600 × 820 × 270 mm | |||||||||||||||||||
| Weight | ≤ 90 kg | ||||||||||||||||||||
| Cooling Method | Smart Air Cooling | ||||||||||||||||||||
| Protection Degree | IP66 | ||||||||||||||||||||
| Technical Specification | Value |
|---|---|
| Efficiency | |
| Max. Efficiency | 98.4% |
| DC Side | |
| Rated DC Voltage | 645 V |
| Max. DC Voltage | 1,100 V |
| Operating DC Voltage Range | 570 V ~ 1100 V |
| Max. DC Current | 215.8 A |
| Max. Number of Inputs | 1 |
| AC Side | |
| Rated AC Active Power | 100kW @40°C |
| Rated AC Voltage | 380 Vac / 400 Vac / 440 Vac |
| Rated AC Grid Frequency | 50 Hz / 60 Hz |
| Max. AC Current | 139.8 A (LUNA2000 - 97KWH-1H1) / 173.2 A (LUNA2000 - 129/161KWH-2H1) |
| Adjustable Power Factor Range | -1 ... +1 |
| Max. Total Harmonic Distortion | < 3% |
| Protection | |
| Anti-islanding Protection | Yes |
| AC Overcurrent Protection | Yes |
| DC Reverse-polarity Protection | Yes |
| Insulation Resistance Detection | Yes |
| Residual Current Protection | Yes |
| DC Surge Protection | Type II |
| AC Surge Protection | Type II |
| Communication | |
| Display | LED Indicators, WLAN + APP |
| Networking Mode | Ethernet, CAN |
| General | |
| Dimensions (W x H x D) | 875 x 820 x 365 mm |
| Weight | < 95 kg |
| Operating Temperature Range | -25°C ~ 60°C (Derating above 40°C) |
| Cooling Method | Smart Air Cooling |
| Max. Operating Altitude without Derating | 4,000 m |
| Relative Humidity | 0 ~ 100% |
| DC Connector | OT/DT Terminal |
| AC Connector | OT/DT Terminal |
| Protection Degree | IP66 |
| Topology | Transformerless |
| Energy Volume (kWh) (Up to 3,870 kWh) | Recommended Combination of Models | ||||
|---|---|---|---|---|---|
| 100 kW | 200 kW | 300 kW | 400 kW | 500 kW | |
| 967.5 | 12 * 5p | ||||
| 935.3 | 12 * 4p + 10 | ||||
| 903.0 | 12 * 4p + 8 | ||||
| 870.8 | 12 * 4p + 6 | ||||
| 838.5 | 12 * 3p + 8 * 2p | ||||
| 806.3 | 12 * 3p + 8 + 6 | ||||
| 774.0 | 12 * 4p | ||||
| 741.8 | 12 * 3p + 10 | ||||
| 709.5 | 12 * 3p + 8 | ||||
| 677.3 | 12 * 3p + 6 | ||||
| 645.0 | 12 * 2p + 8 * 2p | ||||
| 612.8 | 12 * 2p + 8 + 6 | ||||
| 580.5 | 12 * 3p | ||||
| 548.3 | 12 * 2p + 10 | ||||
| 516.0 | 12 * 2p + 8 | ||||
| 483.8 | 12 * 2p + 6 | ||||
| 451.5 | 12 + 8 * 2p | ||||
| 419.3 | 12 + 8 + 6 | ||||
| 387.0 | 12 * 2p | ||||
| 354.8 | 12 + 10 | ||||
| 322.5 | 12 + 8 | ||||
| 290.3 | 12 + 6 | ||||
| 258.0 | 8 * 2p | ||||
| 225.8 | 8 + 6 | ||||
| 193.5 | 12 | ||||
| 161.3 | 10 | ||||
| 129.0 | 8 | ||||
| 96.8 | 6 | ||||
| Power (Up to 2000kW) | |||||
| Smart String ESS (Up to 20x) | 1x | 2x | 3x | 4x | 5x |
